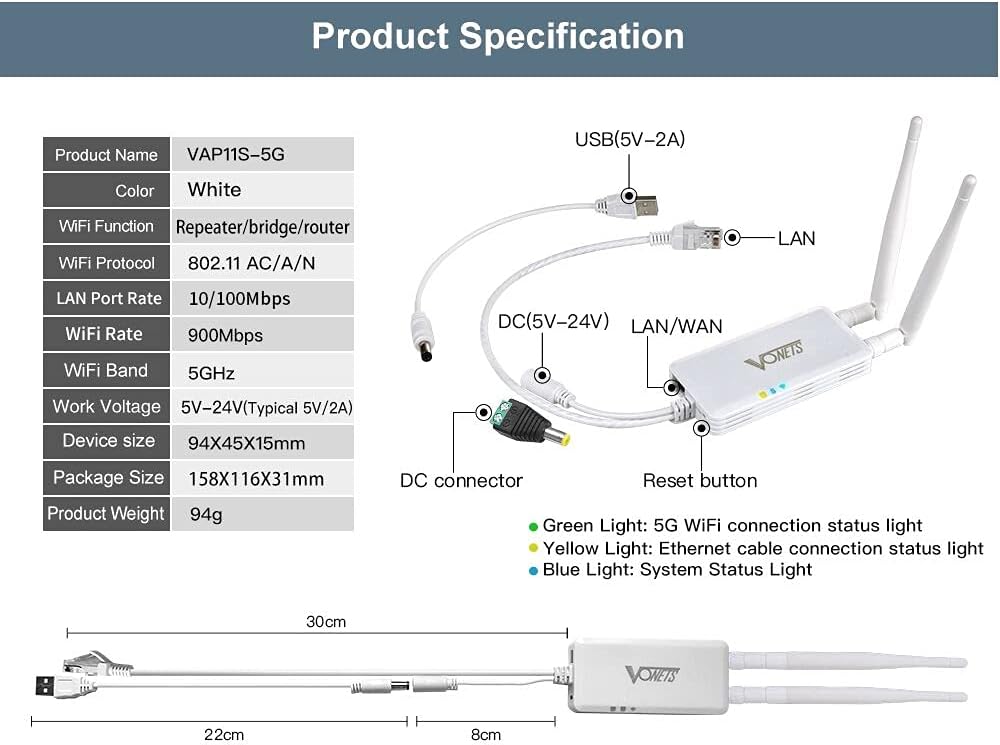

VONETS Industrial Mini 5GHz WiFi Bridge/Router WiFi to Ethernet Adapter 802.11a/n/ac(900Mbps) 2 RJ45 Ports/Antennas USB/DC Powered (DC5V-24V) for DVR Monitoring PLC Medical Device VAP11S-5G

1.WiFi Security: 64/128/WEP encryption; WPA-PSK/WPA2-PSK、WPA/WPA2 Security mechanism; 2. WiFi hotspot memory, maximum memory 100 hotspots; 3. Support connect more than 20pcs WiFi terminal at the same time; 4.Support manually close SSID broadcast, WiFi hardware; 5.Adopt VDNS virtual domain configuration technology to solve the user's trouble of configuration; 6.Support configuration parameter import and export function to facilitate batch configuration of engineering projects; 7.Support IP layer transparent transmission and MAC layer transparent transmission two transparent transmission methods to meet various bridge applications: IP layer transparent transmission (factory default), transparent transmission of IP layer data, can meet most of the bridge applications; MAC layer transparent transmission all data above the MAC layer (link layer) and the MAC layer, including IP layer data; MAC transparent transmission can solve some special applications for MAC layer encryption, such as GoPro camera, Cisco AP, Hikvision monitoring 8.Working environment temperature: -20 °C to 55 °C; Hardware Specification: LED Status Indicator: Ethernet port (cable) Status Light (Yellow); WiFi Connection Status Light (Green); System Status Light (Blue); Reset button: Long press 5 seconds then release(During operation, the product can not be powered down, otherwise it may cause damage to the product.) Tips: 1.After configuration, if this device doesn't work with your camera or devices, please change the setting of "Transmission mode" to "MAC layer transparent"; 2.If you want to use Huawei or iPhone as a hotspot for WiFi bridge, when you setting, please select "SSID and password match" in the "Advanced Setting" under the upper-level hotspot password. Packages: 1*VAP11S-5G 2*5G 3dBi Antennas 1*Fixing kit 1*Industrial DC connector 1*User manual 1*Retail Box

• Industrial Mini 5GHz WiFi Bridge/Router(small size); Can achieve WiFi to Wired or Wired to WiFi function(Ethernet to WiFi or WiFi to Ethernet convert) ; Support WiFi 802.11a/n/ac, WiFi rate: 900Mbps; 2 Ethernet ports 10/100Mbps adaptive,(USB/DC power supply cable;One 10/100Mbps adaptive Ethernet port (one 30cm cable with 1 male RJ45 port).
• Support two kinds of application methods: Router mode (support WiFi WAN up link and WAN/LAN exchange); WiFi Bridge ( IP layer or MAC layer transparent transmission);
• Powered by wide voltage DC5-24V(Typical 5V/2A, ripple less than 100mV), two-stage automatic overvoltage protection (Protection voltage upper limit 27V),USB or DC optional powered mode; 1 Fixing Kit and 1 Industrial DC connector, more suitable for industrial applications;
• Support SSA signal strength detection reporting function,motion detection function and memory hotspot(Up to 100) automatic matching connection function, realize to WiFi motion applications;

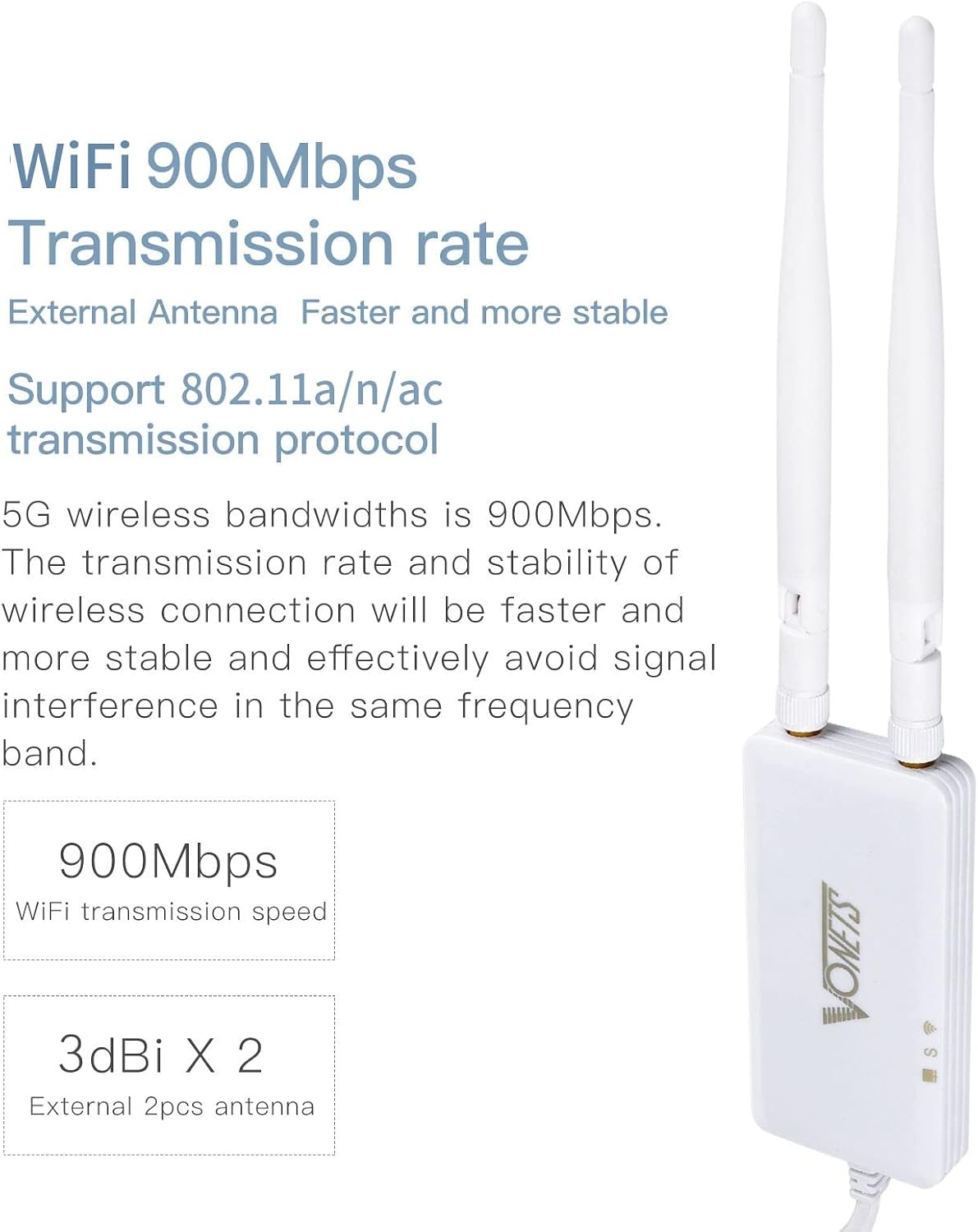

• WiFi Tx Power:19dBm/23dBm optional(Enhanced Power), 2 X 3dBi external antennas; Point-to-point transmission distance: maximum can be up to 300 meters when without obstacle and small data (by 802.11a), then 20 meters to 100meters when used for video transmission; Good Partner for Monitoring, DVR, IP camera, Medical devices, IoT devices, Video transmission, Industrial PLC, PS3, Network Printer, Robot, Doll Machine and more Network application.
